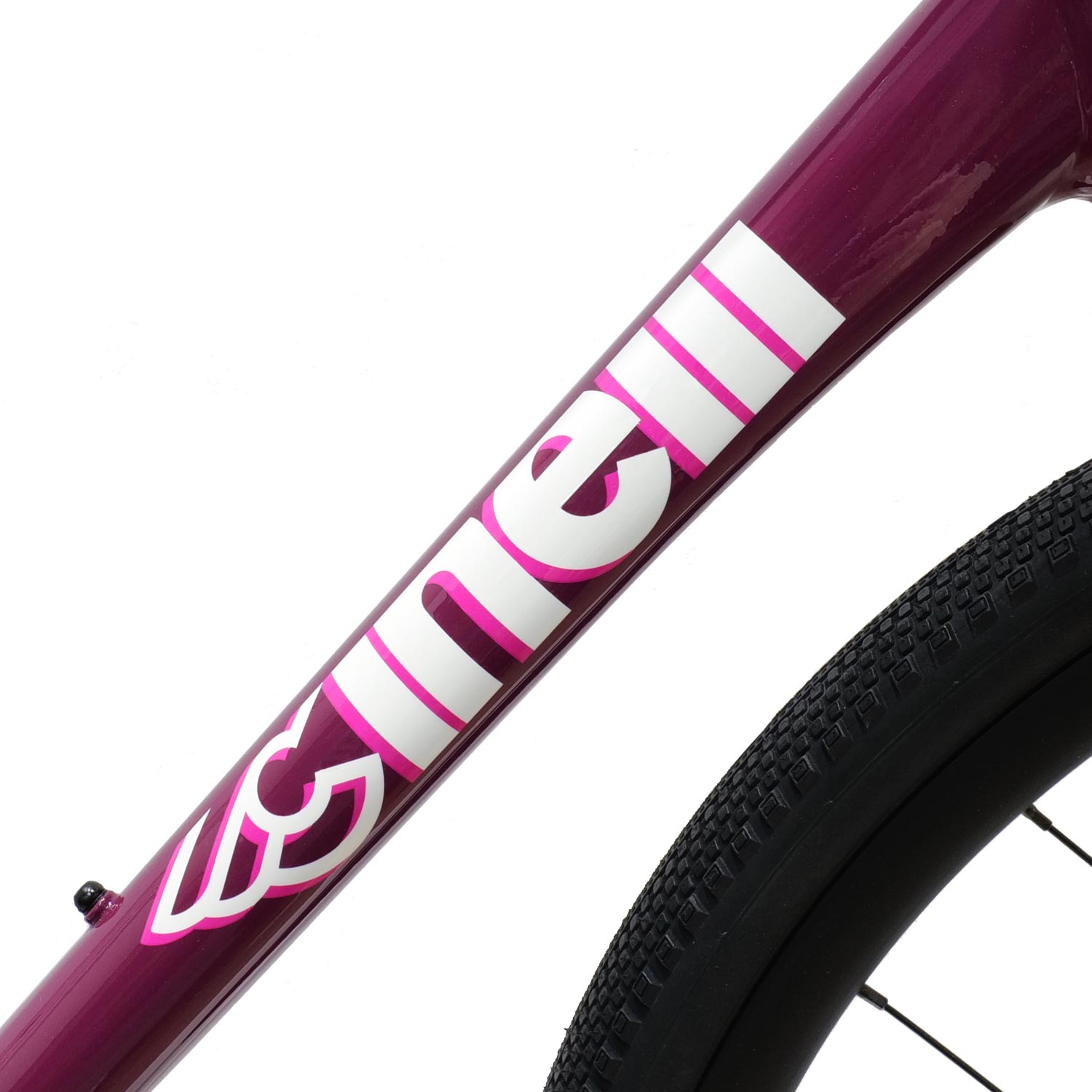

Made with Columbus triple-butted 6061 T6 aluminum tubes, the frame
blends round and special formed profiles for a timeless yet contemporary
aesthetic. Rear dropouts meet the latest standards with the UDH RD
hanger for easy maintenance. Countless mounting points: 3 bottle cage
mounts (1 upper part down tube, 1 lower part down tube, 1 seat tube),
fast fuel rivets on the top tube, anything cages rivets on fork blades,
rear carrier and fenders predisposition.
Stem Lengths
- XS: 80mm
- S: 80mm
- M: 90mm
- L: 100mm
- XL: 100mm
Frame Specifications
- Sizes: XS (49), S (51), M (54), L (56), XL (59)
- Frame: Columbus Triple Butted 6061 T6 Alu Alloy
- Fork: Columbus Cross Plus 1-1/8" - 1-1/2" Full Carbon (sport)
- Cable Routing: Semi-Hidden - Mechanical and Wireless Electronic Groupset Only
- Brake Fitment: Flat Mount Disc, Rotor size up to 160mm
- Bottom Bracket: BSA 68mm Threaded
- Seatpost Dia: 27.2mm
- Headset Included
- Max Tyre Clearance: 700x45c
- Axle sizes: Rear 12x142mm, Front 12x100mm
- Frame Weight: 1800g
- Fork Weight: 585g
Bike Specifications:
- Components: Shimano GRX 12x
- Chainset: Shimano GRX 12x
- Disc Brakes: Shimano 105 ICE 160/140mm
- Cassette Shimano SLX 12x
- Chain: KMC 12X
- Saddle: Prologo Dimension RS

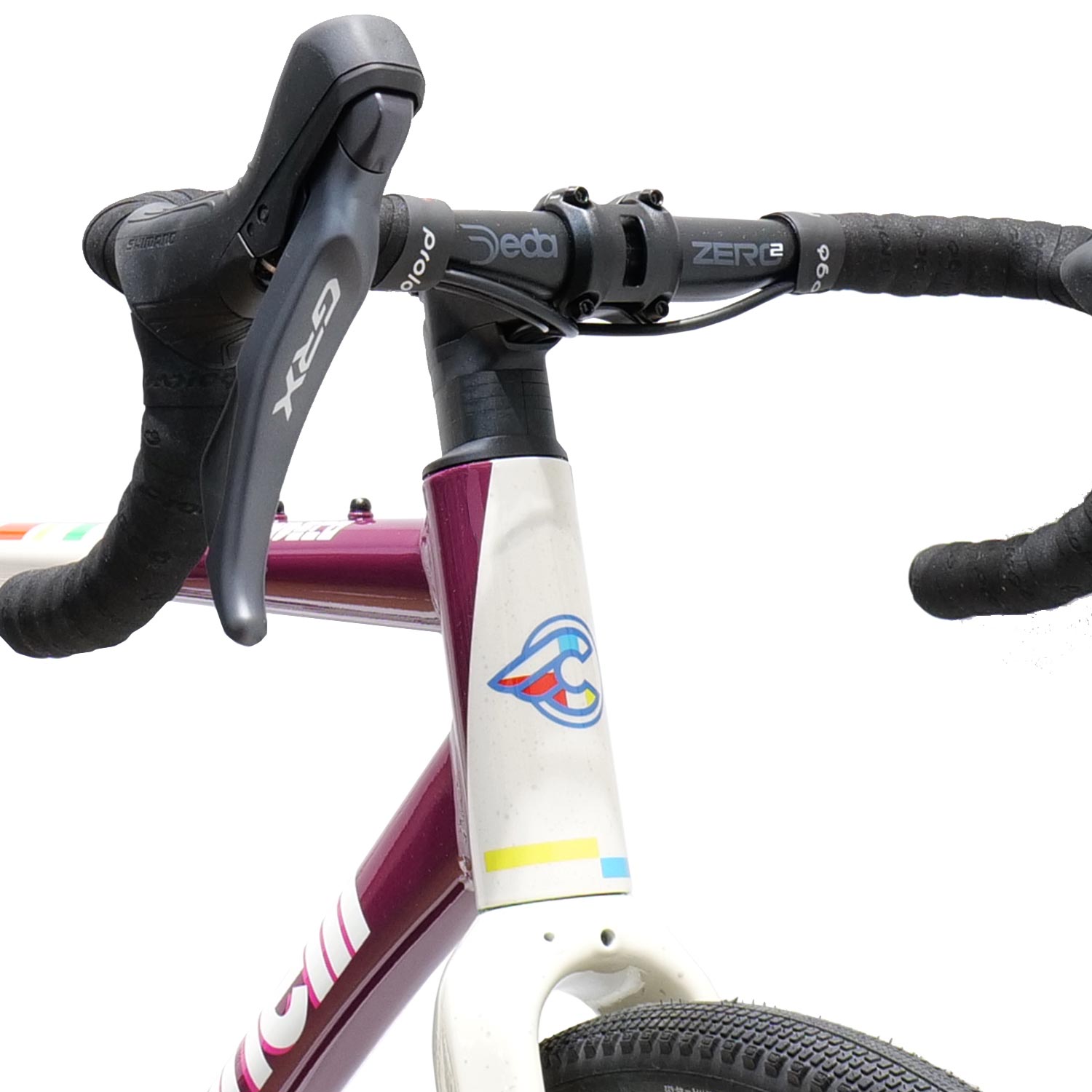

- Handle Bar: Deda Zero2 DCR
- Seatpost: Deda Zero 27.2
- Wheelset: Miche Contact GR Disc
- Tyres: Schwalbe G-One Comp K-Guard
Please Note: Bikes built in-house are supplied with 30mm of headset
spacers, if you require the steerer tube un-cut please let us know at
point of ordering.
Spec may be subject to change due to availability
Features & Benefits
- Columbus triple‑butted 6061 T6 aluminium frame with modern, adventure‑ready geometry
- Extensive mounting options including 3 bottle mounts, top‑tube fast‑fuel rivets, and fork‑blade anything‑cage mounts
- Semi‑hidden cable routing and BSA bottom bracket for easy maintenance
- JOKE system and frame design supporting up to 700×45c tyre clearance
- Columbus Cross+ carbon fork with Dual Rake System for adjustable handling performance
